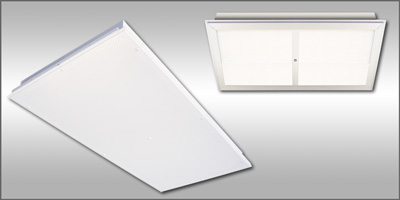

  Multi-Vent - MVHEP Dual Chamber Laminar Flow Panels with HEPA Filter


Application
  • Use where “room-side replaceable” HEPA or ULPA filters are required. Multi-Vent® Filter units are designed for easy replacement of filters
  • Multi-Vent® laminar flow panels provide a unidirectional “piston” of clean air over critical work envelopes effectively isolating the area from external airborne contaminants
  • Superior filter design maximizes efficiency and minimizes pressure loss – each filter is dynamically tested at the factory and labeled with the results.
  • Laminar flow reduces entrainment of recirculated, contaminated air
  • Ideal for use in class 10 to 1000 spaces, including clean rooms and surgical suites
  • Carries particles, introduced by humans into the critical area, AWAY from the critical area
  • Laminar panels can be utilized individually to cover smaller, critical areas, or built-up into an array of multiple panels covering large areas
Product Features
  • 12" x 48", 24" x 24", 24" x 48" standard sizes. Other sizes available, contact your local Anemostat representative for details.
  • Multi-Vent® -filter interface includes knife edge into filter gel seals for zero leak performance
  • DOP, pressure ports, and an aerosol injection tube system simplify field verification and certification
  • Perforated face is 13% open, and removable via 1/4 turn fasteners for cleaning
  • Face is hinged and swings down 90° for easy cleaning. Safety cables prevent face from accidentally swinging down.
  • Balancing damper adjustable through hole with removable plug
  • Closed cell gasket prevents leakage around face
  • Available for lay-in T-bar or hard surface ceiling systems
Options
  • Light Alert Filter Monitoring System (page A-31)
  • Magna-Pak HEPA and ULPA filters with anodized aluminum framing to precisely fit the laminar flow unit (ordered separately)
  • Steel, aluminum, or stainless steel construction
  • Arctic white baked-on epoxy finish, or satin polish (stainless steel) finishes available
  • Aluminum anodized options, contact factory

Magna-Pak
HEPA Filters

Typical Specifications
MVHEP

IOM Manual

Submittals
Model Features Top
Inlet
End
Inlet
MVHEPT Dual Chamber - Lay-In T-Bar
MVHEP Dual Chamber - Hard/Plaster Ceiling
Battens Arrangements
Slip-On Battens
End Inlet Detail
MVB-P Blank-Off Panel, Perforated
MVB-S Blank-Off Panel, Solid

Model MVHEP - Optional Features & Accessories
ANEM-HF - HEPA Filter
Light Alert
LA-24 - Light Alert Power Supply
Light Alert - Typical Wiring Diagram
Light Alert Monitoring - BMS Interface Wiring Diagram
MVH-P - Air Distribution Panel
MVH-V - Air Distribution Baskets
