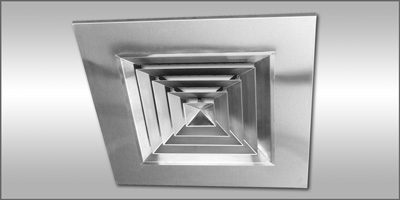

  Model D - Stainless Steel Directional Diffusers


Application
  • Harsh environments dictating stainless steel performance
  • Versatile supply air diffuser for constant or variable air volume heating, cooling, or ventilating
  • Directed air diffusion for space coverage with great flexibility in space layout and geometry, and diffuser location
  • Return air use to maintain matched appearance
  • Surface mounted or suspended grid systems
Product Features
  • 304 Stainless Steel
  • Square or rectangular neck sizes up to 57” in 3” increments
  • 5 “application specific” air distribution patterns – 1 way, 2 way opposite, 2 way corner, 3 way, and 4 way
  • Removable / interchangeable cores for cleaning or changing air distribution needs, without tools.
  • Concealed core attachment – NO screws
  • Satin polished finish on exposed surfaces
Options
  • 316 Stainless Steel
  • White paint
  • Model SSTBF auxiliary mounting frame for hard / plaster ceilings
  • Aluminum or coated steel opposed blade volume control dampers
  • Model SRA square to round duct adapter
  • Custom or optional paint colors
  • Model OBD volume control damper (steel, aluminum, or stainless steel)

MRI Applications

  • All aluminum construction:
    Models: XDF-MRI, XDP-MRI, XDM-MRI

Features at a Glance
