  Analog Electronic Controls

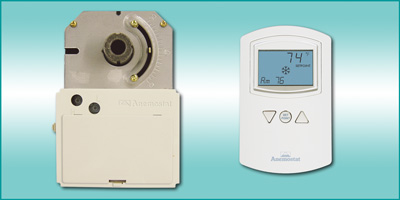

Anemostat’s Model C51 analog controller is used in air flow strategies to provide pressure independent control with analog voltage signals that provide closed loop control of air flow and auxiliary heating devices such as hot water or electric coils. Air flow adjustments are made at the space thermostat, reducing the time required for flow trimming. Anemostat includes the space thermostat (factory calibrated for design flow) where applicable when analog controls are provided.

The Model C51 controller requires a 24vac power source. Typically, a step down transformer is used at each terminal. Electronic input signals such as air velocity and room temperature are processed by the controller. The Velocity Wing inlet sensor provides the controller with signals representing actual flow rate. The integral reversible damper actuator responds as commanded by the controller for flow regulation. The included wall thermostat provides feedback to the terminal controls, signaling requests to meet temperature setpoint.




Control
Package
Selector


Literature Library
Analog Electronic VAV Controllers
Model CSP-5001 Submittal / Product Data Sheet
CSP-5001 Installation Guide
Relay Modules
REE-5001 Triac Relay Module, 3-Stage
REE-5001 Installation Guide
REE-5002 Relay Module Fan with 2-Stage Reheat
REE-5002 Installation Guide
Wall Sensors / Thermostats
CTE-5202 Electronic Room Thermostat w / LCD Display
CTE-5202 Application Guide
CTE-5202 Installation Guide
CTE-5100 Analog Series Thermostats
CTE-5100 Analog Series Installation Guide
Room Sensor and Thermostat Mounting and Maintenance
Sensor and Thermostat Selection Fundamentals
Applications
Applications Guide
