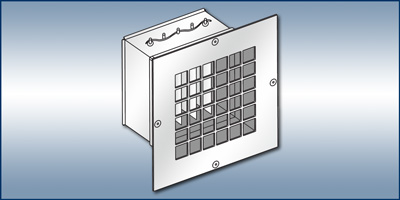

  Model ASFP - Steel Lattice Face Plate


Standard Features
  • Face Plate: 12 GA C.R.S., with 9/16" square holes on 11/16" centers
  • Tamperproof Screws: #10 x 1-1/2" Pinned Flat Head TORX

Finish

  • Standard: White Powder Coat Finish
  • Optional: Rust Inhibiting Prime Coat. Consult factory for other finishes
Optional Features
  • ASFP - Face Plate Patterns:
    - 13/16" square holes on 1" centers
    - 1/4" diameter holes on 3/8" staggered centers
    - 5/16" diameter holes on 7/16" staggered centers
  • ASFP-RR*...Face Plate: 12 GA C.R.S. perforated face with 3/16" diameter holes on 9/32" staggered centers
  • Material Gauges: 3/16", 10 GA, 14 GA
  • Material: Stainless Steel, Aluminum, or Galvanized (consult factory for availability)
  • Tamperproof Screws: Consult factory for specific product applications
  • Opposed Blade Damper: front or rear operated, with attached auxiliary frame
  • Adapter: square to round (shipped loose)

Installation

The ASFP is installed in the ceiling and secured to the support frame by others. Typical application is for a non-ducted return or exhaust unit. See Installation Overview.

Installation Overview
and
Tamperproof Screws
