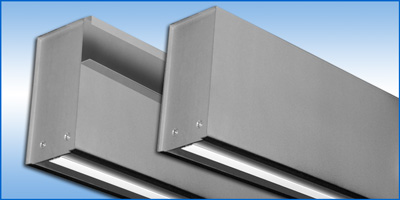

  Model SCD - Adjustable Plenum Slot Diffuser



SUPPLY

Application

  • Field adjustable diffuser for one or two way horizontal discharge patterns, or vertical flow - 180° adjustable.
  • Horizontal air pattern setting blankets ceiling for cooling and heating loads
  • Vertical setting directs sheet of air onto a wall or window
  • Excellent for both constant volume and VAV applications
  • Integrates with inverted T-bar and 9/16" narrow slot grid systems. Adaptable to hard surfaces using mounting frame.
Product Features
  • 1,2,3, or 4 parallel slots integrated into a full height, coated steel supply plenum for optimum performance
  • 3/4", 1", 1-1/2" slot widths
  • 24", 36", 48", 60" nominal lengths
  • Integral supply air plenum minimizes air leakage
  • Flat black finish on exposed surfaces/Factory attached T-Bars are white
  • Model SCR for ceiling plenum return
Options
  • 1/2" Internal glass fiber insulation. External insulation, and “fiberless” insulating systems available.
  • T-Bar Clips
  • Side Tees
  • Round volume damper in inlet.
  • Custom lengths, low profile heights, oval inlets
  • Surface mounting frames
  • End cap notches for straddle applications
  • Cross notch for crossover applications

RETURN

Application

  • Ceiling plenum return unit
  • Identical match for Model SCD supply diffusers
  • Integrates with inverted T-bar and 9/16" narrow slot grid systems. Adaptable to hard surfaces using mounting frame.
Product Features
  • 1,2,3, or 4 parallel slots integrated into a coated steel housing
  • 3/4", 1", 1-1/2" slot widths
  • 24", 36", 48", 60" nominal lengths
  • Flat black finish on exposed surfaces/Factory attached
    T-Bars are white
Options
  • 1/2" Internal glass fiber insulation.
  • T-Bar Clips
  • Side Tees
  • Custom lengths
  • Surface mounting frames
  • End cap notches for straddle applications
  • Cross notch for crossover applications

Supply Performance Data 1-1/2" Slot


Features at a Glance

Submittals
Supply Ceiling Return
Model Mounting   Model Mounting
SCD-L 15/16"
Lay-In T-Bar
SCR-L 15/16"
Lay-In T-Bar
SCD-L9 9/16"
Lay-In T-Bar
SCR-L9 9/16"
Lay-In T-Bar
SCD-D 9/16"
Narrow Slot
SCR-D 9/16"
Narrow Slot
SCD-S Surface Mounted with
T-Bar Frame
SCR-S Surface Mounted with
T-Bar Frame
Combo Supply - Ceiling Return Ducted Return
Model Mounting   Model Mounting
SCD-C-L 15/16"
Lay-In T-Bar
SCR-D-L 15/16"
Lay-In T-Bar
SCD-C-S Surface Mounted with T-Bar Frame SCR-D-L9 9/16"
Lay-In T-Bar
      SCR-D-D 9/16"
Narrow Slot
      SCR-D-S Surface Mounted with
T-Bar Frame
